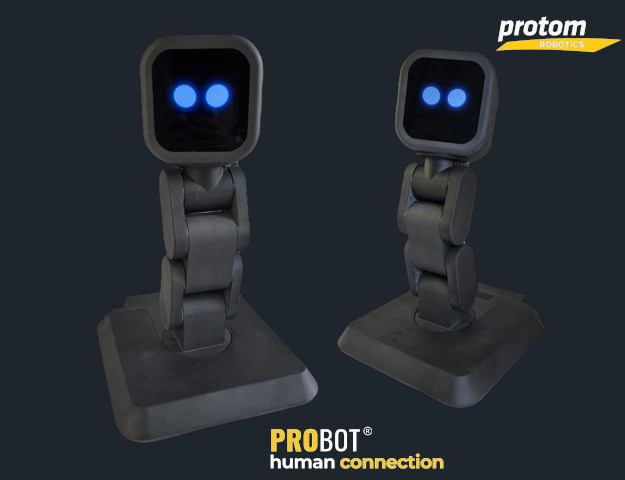

Probot PHD Version

PROBOT® is a social robot entirely designed and manufactured in ITALY.

PROBOT combines the elegance of Italian design with an advanced technological platform.

Its modern and ergonomic lines are not only attractive but are designed to optimize social interactions and make the social robot the focal point in any environment.

PROBOT PHD is the version of Probot created for researchers who want to explore the future of social robotics: this robot is fully programmable.

Through software customization, different application logics can be implemented in PROBOT to meet the requirements of the specific application domain it is intended for.

Equipped with ROS2 and a complete suite of methods and nodes for sensor and actuator usage, it is the ideal platform for developing tailored solutions.

Whether it is research, prototype development, or an experimental application, PROBOT is ready to adapt to the needs of the academic world

Discover Probot PHD in few minutes.

Main Features

• Quad-core ARM v8 64-bit processor with 4 GB DDR4 RAM and 64 GB SSD

• 1080P Camera

• Microphone array for noise reduction and direction detection

• 3 Touch Sensors

• 3 Motors for head and body movement

• 2 Speakers

• WIFI/LAN Connection

• Built-in battery for off-grid operation, ensuring functionality even without a mains power connection

• ROS2 Humble operating system on Ubuntu 22.04

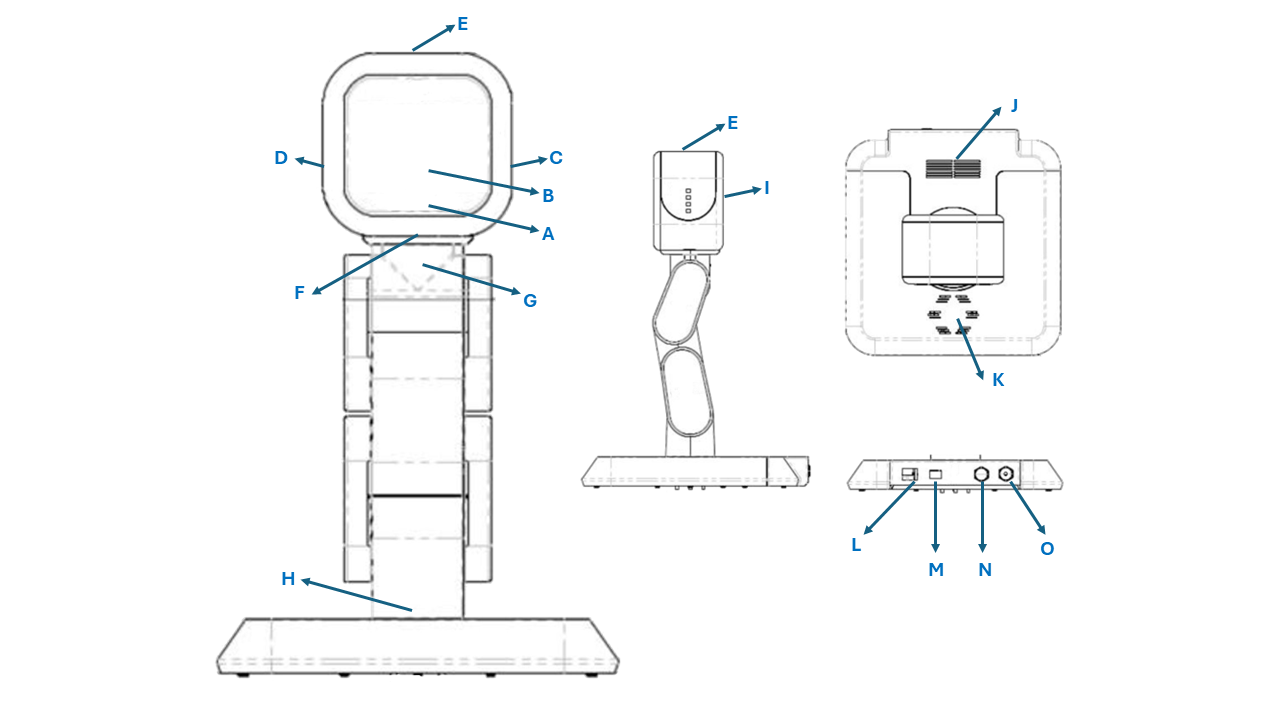

PROBOT's Component

Below is a list of the PROBOT's components:

- **A** – Camera
- **B** – Face
- **C** – Cheek Touch Sensors Right
- **D** – Cheek Touch Sensors Left
- **E** – Head Touch Sensor
- **F** – Head Pan Joint
- **G** – Head Tilt Joint
- **H** – Base Tilt Joint
- **I** – Speaker Head
- **J** – Speaker Base
- **K** – Directional Microphone Array
- **L** – USB Port
- **M** – LAN Port
- **N** – Power Button
- **O** – Power Supply Port
